Why Noise Through Your Floor Is Harder to Stop Than You Think
Acoustic flooring underlay is a layer of sound-absorbing material installed between your subfloor and your finished floor covering. It works by absorbing and dampening the vibrations caused by footsteps, dropped objects, and general movement — stopping that energy from traveling through the structure of your building.
Here is a quick comparison of the most common acoustic underlay options to help you choose:
| Underlay Type | Best For | Typical IIC Improvement | Price Range (per sq ft) |
|---|---|---|---|
| Recycled rubber | Tile, hardwood, LVT | High (Delta IIC 22-32) | $1.79 – $2.39 |
| Cork or cork-foam | Vinyl, laminate, wood | Medium-high (IIC 50-70) | Moderate |
| Cross-linked foam | Laminate, engineered wood | Medium | Low-moderate |
| Mass-loaded vinyl | Timber and concrete floors | High (airborne noise) | Higher |
| Polyethylene foam | Glue-jointed laminate | Basic (est. 20 dB) | Low |
If you work from home, noise through your floor is one of the most disruptive and hardest to fix problems you can face. Footsteps from above, vibrations from appliances, or sound bleeding between rooms can completely wreck your concentration.
The good news? The right acoustic underlay can make a dramatic difference — without tearing up your entire floor.
Two types of noise matter here:
- Impact noise — structure-borne sound from physical contact with the floor (footsteps, dropped items)
- Airborne noise — sound that travels through the air and then through building materials (voices, music)
Most acoustic underlays target impact noise first, but denser materials also help reduce airborne sound transmission.
A Comprehensive Guide to Acoustic Flooring Underlay Performance
When you start shopping for acoustic flooring underlay, you will immediately run into a “alphabet soup” of technical ratings. Understanding these numbers is the difference between a quiet home and a very expensive mistake.
The primary metric we look at is the Impact Insulation Class (IIC). This rating measures how well a floor-ceiling assembly blocks structure-borne impact noise, like a neighbor’s heavy footsteps or a dropped TV remote. To get these numbers, labs use a “hammer machine” that strikes the floor while microphones measure the sound in the room below. A standard, untreated floor might have an IIC of around 30, which is noisy. High-performance systems can reach an IIC of 70 or higher. For a neutral reference on how building acoustics are measured, the overview on soundproofing is a useful starting point.
However, the IIC rating can be a bit sneaky because it depends on the entire floor assembly (the subfloor, the ceiling below, and the joists). This is where Delta IIC ($\Delta$IIC) comes in. This number tells us exactly how much “extra” quiet the underlayment itself adds to a standard concrete slab. For example, a high-quality 10mm rubber underlayment might offer a Delta IIC of 32, which is a major improvement in performance.
Then we have STC (Sound Transmission Class). While IIC focuses on thumps and bumps, STC measures how well the floor blocks airborne noise like talking or music. If you want to dive deeper into the physics of this, check out our article on How Does Soundproofing Work?.
For those just starting their journey, A Beginner’s Guide To Basic Soundproofing is a great place to get your bearings. Generally, you want to aim for a system with an IIC of 50 or higher to meet standard building codes, but for luxury “library quiet” results, 65+ is the gold standard.
| Rating Type | What it Measures | What a “Good” Number Looks Like |
|---|---|---|
| IIC | Impact noise (footsteps) | 50 (Code Minimum), 60+ (Quiet) |
| Delta IIC | The underlay’s specific contribution | 20+ (Noticeable), 30+ (Excellent) |
| STC | Airborne noise (voices) | 50+ (Standard), 60+ (Superior) |
Types of Materials Used in Acoustic Underlayment
Not all acoustic flooring underlay is made equal. The material you choose dictates how much noise is blocked, how long the floor lasts, and even how it smells! We’ve seen everything from high-tech foams to recycled tires used to keep things quiet. For a broad look at all your options, read up on the Different Types Of Soundproof Insulation And Their Benefits.
Eco-Friendly Acoustic Flooring Underlay Options
If you are worried about your carbon footprint, you are in luck. Many of the best-performing underlays are made from recycled regrind rubber. These products often contain up to 94% post-consumer recycled content (think old tires that would otherwise be in a landfill).
High-performance slimline underlays are also becoming popular for renovations where you don’t have much vertical space to work with. These materials often pass strict VOC (Volatile Organic Compound) tests, ensuring they won’t off-gas nasty chemicals into your home. It’s a win-win: you get a quiet home and a clear conscience.
Performance Comparison of Rubber vs Foam
This is the “heavyweight vs. lightweight” battle of the flooring world.
Rubber Underlayment:
- Density: Very high. This mass is great for blocking airborne noise.
- Longevity: Rubber doesn’t crush easily. It keeps its “bounce” for decades.
- Vibration Absorption: Excellent for heavy foot traffic and commercial spaces.
- Best for: Tile, hardwood, and areas with heavy furniture.

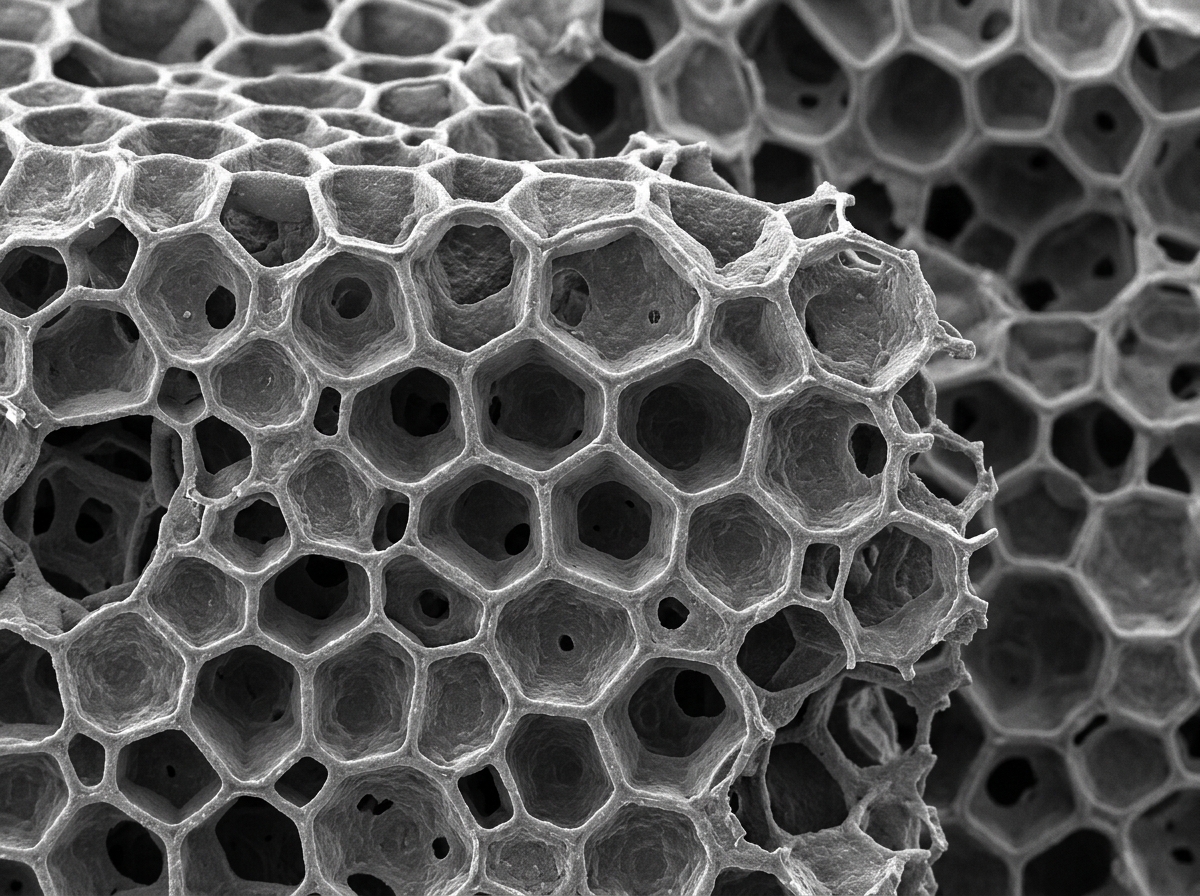

Foam Underlayment (specifically Cross-Linked Foam):
- Structure: Unlike standard cheap foam, cross-linked foam has a “closed-cell” structure that provides better longevity.
- Compression: It offers a softer, more cushioned feel underfoot.
- Thermal Resistance: Great for keeping a room warm.
- Best for: Laminate and engineered wood.
We often recommend Complete Guide To Mass Loaded Vinyl For Soundproofing for those who need extreme airborne noise reduction, as MLV is often integrated into composite underlays for a “double-whammy” effect.
Choosing the Right Underlay for Your Floor Type
Selecting an acoustic flooring underlay is a bit like choosing a partner; they have to be compatible! If you put a soft, squishy foam under a heavy tile floor, your grout will crack in a week. If you put a thick rubber under a thin vinyl plank, the joints might “telegraph” or show through.
Before you buy, you need to consider your subfloor. Is it concrete or wood? Concrete subfloors often need a vapor barrier to prevent moisture from ruining your wood floors. For a deeper look at specific mat options, check out Looking Into Soundproof Mats For Floors.
Best Acoustic Flooring Underlay for Hardwood and Laminate
Hardwood and laminate floors are notorious for being “clicky.” To fix this, you need an underlay that balances sound absorption with compression resistance.
For hardwood, we often look at high-performance 5mm acoustic underlays made of natural rubber. These provide a solid base that prevents the wood from “hollow” sounding echoes. If you are installing a floating floor, look for a premium acoustic underlay that includes an integrated vapor barrier. This usually looks like a gold or silver foil backing that reflects heat and blocks moisture.
Solutions for Vinyl, Tile, and Carpet
Luxury Vinyl Plank (LVP) is thin, so it needs a very dense, high-performance underlay (usually around 1.5mm to 2.5mm) to ensure the locking mechanisms don’t break.
Tile requires “extra heavy” rated rubber underlayment. Since tile is rigid, the underlayment must be able to handle the weight without shifting.
Carpet is naturally quiet, but adding an acoustic layer underneath can turn a room into a recording studio. However, if you’re on a budget, you might consider Soundproofing With Rugs And Carpets: A Cheap Alternative. For more ideas on saving money, see our list of Budget-Friendly Soundproof Materials Worth Considering.
Installation Best Practices and Building Code Compliance
You can buy the most expensive acoustic flooring underlay in the world, but if you install it wrong, it won’t work. The biggest mistake? “Short-circuiting.” This happens when you nail through the underlayment into the subfloor. The nail acts like a little bridge, carrying the sound vibrations straight past your expensive soundproofing.
Key Installation Steps:
- Subfloor Prep: The floor must be clean, dry, and flat. Most manufacturers require the floor to be flat within 3/16″ over a 10-foot radius.
- Moisture Limits: If you’re on concrete, check the vapor emissions. Most underlays have a limit (often around 4 lbs).
- Adhesive Application: Use the right glue! Some adhesives react with the plasticizers in vinyl or rubber, causing stains or failure.
- Perimeter Isolation: Leave a small gap at the walls and fill it with acoustic sealant. This prevents the floor from touching the walls and vibrating the whole house.
For those in the UK or multi-family housing, Document E compliance is a big deal. This regulation requires specific levels of airborne and impact sound insulation between dwellings. Usually, this means achieving an IIC of 50 or higher. Using a popular silver acoustic underlay with high-density foam or a 5mm natural rubber layer is often the easiest way to pass these inspections.
Frequently Asked Questions about Acoustic Underlayment
Can I use acoustic underlay with radiant heating?
Yes! But you have to be careful about the “tog” value. This measures thermal resistance. If your underlay is too thick or has too high a tog value, it will act like a blanket and stop the heat from reaching your feet. Look for professional-grade acoustic underlays specifically rated for underfloor heating. They are usually thinner and designed to conduct heat efficiently while still dampening sound.
How much does acoustic underlayment cost per square foot?
Pricing varies wildly based on density and material.
- Basic Foam: $0.25 – $0.50 per sq ft.
- Recycled Rubber (10mm): $1.79 – $2.39 per sq ft.
- Specialty Peel-and-Stick: $2.00+ per sq ft. Trade prices are often lower if you buy in bulk (rolls of 100-300 sq ft), while retail “per square foot” prices at big-box stores tend to be higher.
Does underlayment protect against moisture and mold?
Many premium underlays come with an integrated vapor barrier (like a metallised foil). This is crucial for subfloor smoothing and protecting your floor from moisture rising through a concrete slab. Some also include antimicrobial protection (like Microban) to prevent mold and mildew from growing in the dark spaces under your floor.
Conclusion
At Finance No Vax, we know that choosing the right acoustic flooring underlay is an investment in your peace of mind. Whether you’re opting for a heavy-duty 10mm rubber roll for your home gym or a slimline foam for your apartment’s new laminate, the key is matching the material to your specific floor type and noise goals.
Don’t forget that soundproofing is a holistic process. While the underlay handles the floor, you might still need to look at walls and ceilings for total silence. For more deep dives into sound control, explore our More info about soundproofing materials section.
Properly installed, a high-quality underlay will last as long as your floor itself, providing a quiet, comfortable, and stable foundation for your home for decades to come. Happy building!
